Thermal Oxide vs. PECVD Oxide for MEMS

Two ways to form silicon dioxide, two very different films. This guide explains how each process works, compares their material properties, and gives practical guidance for choosing the right oxide for your device.

Hero image — REPLACE_WITH_MEDIA_URL

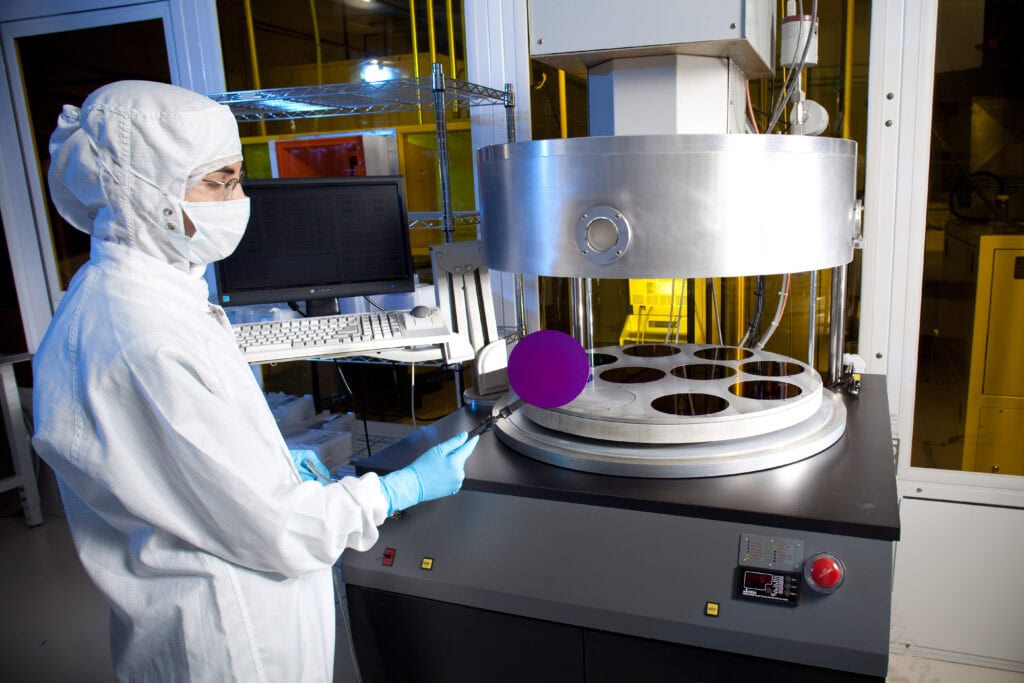

Thermal oxidation furnace and PECVD reactor for silicon dioxide

Thermal oxide and Plasma Enhanced Chemical Vapor Deposition (PECVD) oxide are the two primary methods used to form silicon dioxide (SiO₂) during MEMS fabrication, silicon photonics, and semiconductor wafer processing. In MEMS and silicon photonics, silicon dioxide serves as an etch mask, a sacrificial layer, an electrical insulator, and an optical cladding. Although both films are silicon dioxide, they are produced by fundamentally different mechanisms. Those differences determine interface quality, dielectric performance, film density, residual stress, thermal budget, substrate compatibility, and where each process belongs within a MEMS fabrication flow.

Choosing the right oxide is often one of the earliest process decisions an engineer makes, because it influences downstream lithography, etching, metallization, release steps, optical performance, and long-term device reliability.

Same Material, Two Different Processes

The shortest way to describe the difference is growth versus deposition. Thermal oxidation grows silicon dioxide by consuming silicon from the wafer itself. PECVD deposits silicon dioxide onto an existing surface from plasma-activated process gases. That single distinction drives nearly every practical difference that follows, from process temperature to which substrates each method can coat.

Thermal oxide grows into the siliconCross-section: a thermal oxide layer straddles the original silicon surface, with 56 percent of the final thickness above the original surface and 44 percent below it, where silicon was consumed.Thermal oxide — silicon isconsumed during processSiliconThermal SiO₂Original silicon surface56% above44% below(silicon consumed)Grows down into the wafer and up above it
Growth consumes silicon. About 44% of the finished oxide thickness lies below the original silicon surface and 56% above it, because oxidation converts the wafer itself into SiO₂.
PECVD oxide is deposited on topCross-section: a PECVD oxide layer sits entirely above the original surface of the substrate, which is unchanged; no silicon is consumed.PECVD — is depositedon top of substratesSubstrate — Si, metal, glass, SOI …PECVD SiO₂Original surface — unchanged100% above(no silicon consumed)Film adds thickness entirely above the surface
Deposition adds material. PECVD builds the oxide on top of whatever surface is present — silicon, metal, dielectric, quartz, sapphire, glass, or SOI — without consuming the substrate.

How Thermal Oxidation Works

Thermal oxidation is a growth process performed in a high-temperature diffusion furnace. Silicon wafers are loaded into a horizontal or vertical furnace where carefully controlled flows of dry oxygen (O₂) or water vapor (H₂O) react directly with exposed silicon at approximately 900 to 1200 °C. As the oxidizing species reach the surface, they chemically convert the substrate into silicon dioxide.

Thermal oxidation furnaceWafers stand vertically in a quartz tube inside a heated diffusion furnace; dry oxygen or water vapor flows in at 900 to 1200 degrees Celsius and exhausts at the far end.Thermal oxidation furnace900–1200 °CFURNACE TUBEWafers loaded verticallyO₂ or H₂O (steam)Exhaust
Diffusion furnace. Wafers stand vertically in a heated quartz tube while dry oxygen or water vapor reacts with the exposed silicon, converting the wafer surface itself into SiO₂ on every exposed face.

Unlike a deposition process, thermal oxidation consumes silicon from the wafer. Approximately 44 percent of the finished oxide thickness grows below the original silicon surface while 56 percent grows above it. Because the film is formed directly from the silicon crystal lattice, the resulting oxide is dense, stoichiometric, contains essentially no bonded hydrogen, and forms an exceptionally clean silicon-to-oxide interface with very low interface trap density, high dielectric strength, and excellent long-term reliability.

Two oxidation chemistries are used. Dry oxidation reacts silicon with oxygen, producing slower growth rates but the highest quality, thinner films with superior electrical properties. Wet oxidation uses water vapor to increase the growth rate significantly and is commonly selected for thick oxides used in electrical isolation, MEMS sacrificial layers, and DRIE masking.

Because oxidation occurs wherever silicon is exposed, both sides of the wafer and the exposed wafer edge oxidize simultaneously unless a masking or protection method is applied.

Silicon wafer with thermally grown oxideA three-dimensional wafer disc shown with a silicon body, a green oxide film on the top surface and edge, and a dashed outline indicating the oxide also grows on the backside.Silicon wafer with thermally grown oxideThermal SiO₂ filmSilicon waferOxide grows on all exposed surfaces
Grown everywhere silicon is exposed. Because oxidation converts the silicon itself, the film forms on the front, back, and edge of the wafer simultaneously unless a masking or protection method is applied.

Oxidation Kinetics

Thermal oxidation follows predictable kinetics. Thin oxides initially grow rapidly because oxidizing species reach the silicon interface easily. As the oxide thickens, oxygen or water vapor must diffuse through the existing film to reach the interface, which steadily reduces the growth rate. Dry oxidation produces the highest quality thin oxides, while wet oxidation provides the faster growth needed for thick isolation and MEMS applications.

Dry Chlorinated Oxide

Dry chlorinated oxide is a refinement of dry thermal oxidation in which a small, carefully controlled amount of a chlorine source is added to the oxygen ambient inside the furnace. The chlorine is incorporated near the silicon-to-oxide interface as the film grows, where it improves the electrical quality, cleanliness, and long-term reliability of the oxide. Rogue Valley Microdevices uses Trans-LC as the chlorine source for this process.

The chlorine performs two related functions. It getters mobile ionic contamination, particularly sodium, that would otherwise drift through the oxide and shift device threshold voltages, and it traps heavy metals such as iron, chromium, and nickel before they can degrade the interface. The same chemistry continuously cleans the furnace tube by converting metallic residue into volatile chlorides that are carried away in the gas flow.

Compared with standard dry oxidation, a chlorinated oxide provides:

  • Higher dielectric breakdown strength and lower leakage current
  • Lower fixed oxide charge and interface trap density
  • Reduced oxidation-induced stacking faults
  • Improved minority carrier lifetime
  • Effective gettering of mobile ions and heavy metal contamination
  • A slightly higher oxidation rate than chlorine-free dry oxidation

Trans-LC is a liquid chlorine source based on trans-1,2-dichloroethylene (trans-DCE). It is metered into the furnace as a vapor carried in the oxygen flow during oxidation. Trans-LC replaced earlier chlorine sources such as TCA (1,1,1-trichloroethane) and TCE, which are restricted as ozone-depleting compounds under the Montreal Protocol, and it is preferred over corrosive anhydrous HCl gas. It carries a low toxicity hazard rating, is not regulated as an ozone-depleting chemical, and decomposes at a relatively low temperature, which gives consistent, repeatable results across the dry oxidation temperature range.

Dry chlorinated oxide is selected wherever oxide integrity and device reliability are critical and mobile ion control matters most, including gate dielectrics, high-reliability MEMS, and sensor devices.

How PECVD Forms Silicon Dioxide

Plasma Enhanced Chemical Vapor Deposition (PECVD) is a low-temperature deposition process performed inside a vacuum reaction chamber. Process gases, typically silane (SiH₄) together with nitrous oxide (N₂O) or oxygen (O₂), are introduced into the chamber. Radio-frequency power generates a low-pressure plasma that dissociates the precursor gases into highly reactive radicals and ions.

PECVD process chamberA vacuum chamber with a showerhead top electrode and a heated bottom chuck; RF power strikes a plasma between them and deposits oxide on the front side of the wafer at 200 to 400 degrees Celsius.PECVD process chamberSiH₄ + N₂O / O₂RF ∿RF plasmaWafer sitting on heated chuck, process side up200–400 °C
PECVD process chamber. The plasma supplies the activation energy instead of furnace heat, so oxide deposits at only 200 to 400 °C. The chuck shields the backside, making PECVD a front-side process.

These activated species migrate to the wafer surface where they recombine to form a deposited silicon dioxide film. Because the plasma supplies the activation energy, deposition occurs at only 200 to 400 °C without consuming the substrate. This allows oxide to be deposited after temperature-sensitive materials, aluminum interconnects, and completed MEMS structures are already present on the wafer.

PECVD deposits oxide onto silicon, metals, dielectric films, quartz, sapphire, glass, and silicon-on-insulator (SOI) wafers. The deposited film contains small amounts of bonded hydrogen and is slightly less dense than thermal oxide, but it offers outstanding flexibility for late-stage integration. Because the wafer rests on a temperature-controlled chuck or electrode that shields the backside from the plasma, deposition is typically limited to the front side of the wafer.

How the Two Processes Differ

Process temperature and thermal budgetPECVD deposits between 200 and 400 degrees Celsius, below the aluminum limit; thermal oxidation runs between 900 and 1200 degrees Celsius, well above it.Process temperature & thermal budget03006009001200 °CPECVD 200–400 °CThermal 900–1200 °C≈ Aluminum limitLow thermal budget · after metalHigh thermal budget · early, bare silicon
Temperature sets the rules. PECVD’s low temperature keeps it below the aluminum limit, so it can go over metal; thermal oxidation’s furnace heat means it must run early, on bare silicon.
Growth versus depositionThermal oxidation consumes silicon to grow oxide from the substrate. PECVD deposits a new dielectric layer onto the existing surface.
Diffusion furnace versus RF plasma reactorThermal oxidation relies on furnace heat to drive the reaction. PECVD uses plasma energy, which enables processing at low temperature after temperature-sensitive structures are already present.
Frontside and backside coverageThermal oxidation grows oxide on both sides of the wafer and all exposed silicon surfaces unless protected. PECVD is typically a front-side process because the backside is shielded by the process chuck or electrode.
Thermal budgetThermal oxidation carries a high thermal budget and can redistribute dopants. PECVD maintains a low thermal budget suitable for late-stage processing.
Film qualityThermal oxide provides the highest dielectric quality, the cleanest interface, and the lowest leakage. PECVD provides excellent passivation and isolation with slightly lower density and small amounts of bonded hydrogen.
Film stressThermal oxide is typically compressive. PECVD film stress can often be tuned through deposition parameters, allowing engineers to develop compressive or tensile films for MEMS structures where residual stress influences device performance.

Electrical and Mechanical Properties

Thermal oxide remains the benchmark dielectric because of its dense stoichiometric structure, exceptionally clean silicon interface, extremely low interface trap density, high dielectric strength, and low leakage current. It is the preferred choice for gate oxide, field oxide, and any application requiring the lowest possible leakage.

PECVD oxide provides excellent electrical insulation, passivation, and environmental protection. It is generally selected where interface perfection is less critical and where the ability to tune film stress is valuable for managing the mechanical behavior of MEMS structures.

Optical Properties

Thermal oxide is commonly selected for silicon photonics because of its excellent optical quality, stable refractive index, and extremely low defect density, which make it well suited to optical waveguide undercladding. PECVD oxide is frequently used as an overcladding or protective dielectric because it can be deposited after waveguide fabrication without exposing the device to high temperature.

Step Coverage and Topography

Thermal oxidation grows uniformly on exposed silicon and faithfully follows the underlying topography. PECVD oxide provides good step coverage over moderate topography and is well suited to passivation and interlayer dielectric applications. For very high-aspect-ratio features that demand greater conformality, engineers may evaluate LPCVD or ALD processes instead.

Thermal oxide growth versus front-side PECVD coverageCross-sections: thermal oxide grows evenly on all exposed silicon including the wafer backside; PECVD oxide coats the front side over a metallized feature and leaves the backside bare.Thermal oxide grows on all exposed siliconPECVD coats side facing upSiliconUniform growth, follows the stepOxidizes the backside tooMetalSiliconCoats the front, over topographyBackside left bare= Silicon dioxide
Coverage tells them apart. Thermal oxide grows at even thickness on every exposed silicon surface, backside included; PECVD coats the front side over moderate topography and leaves the backside bare.

Process Integration

Many production MEMS and photonics flows intentionally use both processes. Thermal oxide is typically grown early, before metal deposition, to provide electrical isolation, hard masking, sacrificial layers, or optical undercladding. Once high-temperature processing is complete, PECVD oxide is deposited to provide passivation, interlayer dielectric insulation, encapsulation, or optical overcladding. Combining the two processes lets engineers leverage the strengths of each while minimizing process compromises.

Where each oxide fits in the fabrication flowAlong the process timeline, thermal oxide is grown early before metallization, then metal is added, then PECVD oxide is deposited late to passivate the finished device.Where each oxide fits in the flowHigh-temperature stepsLow-temperature stepsProcess time →Thermal oxideBefore metal —Isolation · mask · sacrificialMetallizationAluminum addedPECVD oxideAfter metal —Passivate · ILD · overclad
Two oxides, two stages. Thermal oxide goes in early while the wafer can still take furnace heat; PECVD oxide goes in late to insulate and seal the finished, metallized device.

Thermal Oxide vs. PECVD Oxide at a Glance

PropertyThermal Oxide (Grown)PECVD Oxide (Deposited)
FormationSilicon converted into SiO₂SiO₂ deposited from plasma-activated gases
Process equipmentQuartz diffusion furnaceRF PECVD reactor
Process chemistryDry O₂ or H₂OSiH₄ + N₂O or O₂ plasma
Temperature900–1200 °C200–400 °C
Silicon consumedYes; about 44% grows below the original surfaceNo
Frontside / backside coverageBoth wafer sides and exposed edges oxidize unless protectedTypically front side only; backside shielded by the chuck
Compatible substratesExposed siliconSilicon, metals, dielectrics, quartz, sapphire, glass, SOI
Film densityHighestHigh
Hydrogen contentEssentially noneLow bonded hydrogen
Interface qualityExcellentGood
Film stressTypically compressiveTunable (compressive or tensile)
Step coverageUniform growth on exposed siliconGood over moderate topography
Growth / deposition rateSlowFast
Thermal budgetHighLow
Thickness at RVM500Å to 10µmUp to 5µm
Typical process sequenceEarly fabricationMid-stage to late-stage fabrication
Typical applicationsGate oxide, field oxide, DRIE hard mask, sacrificial oxide, waveguide undercladdingPassivation, ILD, encapsulation, optical overcladding

Typical Applications

Thermal Oxide

  • Gate oxide
  • Field oxide
  • Electrical isolation
  • DRIE hard mask
  • MEMS sacrificial layers
  • Optical waveguide undercladding

PECVD Oxide

  • Passivation
  • Interlayer dielectric (ILD)
  • Device encapsulation
  • Optical overcladding
  • Low-temperature insulation

MEMS Application Examples

ApplicationTypical Oxide Strategy
Pressure sensorsThermal oxide for electrical isolation and masking; PECVD oxide for final passivation.
AccelerometersThermal oxide sacrificial layers combined with PECVD dielectric protection.
Microfluidic devicesThermal oxide for channel insulation; PECVD oxide for sealing or encapsulation.
Silicon photonicsThermal oxide undercladding followed by PECVD oxide overcladding.

Choosing the Right Oxide

Choose thermal oxide when interface quality, dielectric strength, thick high-quality oxide, DRIE masking, sacrificial oxide, or optical undercladding are the primary requirements. Choose PECVD oxide when thermal budget is the limiting factor, when oxide must be deposited over metals or completed device structures, or when the substrate is something other than silicon.

  1. Is the wafer still bare silicon? If yes, evaluate thermal oxidation.
  2. Does the process already include aluminum or temperature-sensitive structures? If yes, evaluate PECVD.
  3. Is the silicon-to-oxide interface electrically critical? Choose thermal oxide.
  4. Is the objective passivation, encapsulation, or interlayer insulation? Choose PECVD.
  5. Remember that many successful fabrication flows intentionally use both processes at different stages.

Frequently Asked Questions

Is PECVD oxide the same as thermal oxide?

No. Both are silicon dioxide, but thermal oxide is grown by consuming silicon while PECVD oxide is deposited from plasma-activated process gases.

Why can’t thermal oxide be grown over metal?

Thermal oxidation requires exposed silicon and furnace temperatures well above the limits of common interconnect metals. PECVD oxide is used when a dielectric is needed over metal.

Which oxide has better electrical performance?

Thermal oxide. Because it is grown directly from the silicon crystal lattice, it has very low interface trap density, high dielectric strength, and low leakage current.

Can PECVD oxide replace thermal oxide?

Not always. Although PECVD oxide provides excellent insulation and passivation, it cannot match the silicon-to-oxide interface quality, dielectric integrity, or electrical performance of thermally grown oxide. The appropriate choice depends on process requirements, thermal budget, and device architecture.

Can both processes be used together?

Yes. Many MEMS and photonics flows grow thermal oxide early in the process, then deposit PECVD oxide later for passivation, encapsulation, or overcladding after metal and temperature-sensitive layers are in place.
