Why Some Silicon Wafers Show Dopant Rings After Thermal Oxidation
Concentric color rings that appear only after an oxide is grown are not created by the furnace. They reveal a dopant pattern that was frozen into the crystal long before the wafer reached the fab.
Sometimes a heavily doped silicon wafer that looked clean and uniform develops a pattern of concentric color rings, or a swirl, after thermal oxidation. These are commonly called dopant rings. They can be alarming because they appear only after the oxide is grown, but they are not created by the oxidation step. The oxidation simply makes visible a dopant non-uniformity that was already present in the silicon crystal.
This guide explains what dopant rings are, why they form in the crystal, why thermal oxidation brings them out, and why they tend to show up on lower quality, heavily doped substrates. It also covers whether the rings matter for your device and how to avoid them.
What the Rings Look Like
After oxidation, the rings appear as smooth, concentric bands of slightly different color centered roughly on the middle of the wafer, sometimes forming a spiral or swirl rather than perfect circles. The pattern follows the symmetry of the original crystal rather than anything in the device layout or the oxidation tool. Because the color comes from the oxide, the rings are usually visible only after an oxide or other transparent film is present, while the bare polished wafer typically looks uniform. The same pattern is sometimes described as resistivity striations or oxidation striations.
Where the Pattern Comes From: Crystal Growth Striations
The root cause lies in how the silicon crystal was grown. Most silicon is pulled from a melt by the Czochralski method, in which a rotating seed slowly draws a growing crystal out of molten silicon. The rate at which dopant atoms are incorporated into the crystal is sensitive to small fluctuations in growth rate and melt temperature and to convection in the melt. As the crystal rotates, these fluctuations are recorded as fine, periodic variations in dopant concentration known as growth striations. When the ingot is sliced into wafers across the growth axis, those striations appear as concentric rings of slightly higher and lower doping. They are frozen into the crystal long before the wafer ever reaches a fabrication line.
Why Thermal Oxidation Makes Them Visible
Thermal oxidation reveals the striations through two effects that work together.
Doping Changes the Oxidation Rate
Heavily doped silicon oxidizes faster than lightly doped silicon, and the effect depends on the local dopant concentration. Where dopant is more concentrated, the oxide grows slightly thicker; where it is less concentrated, the oxide grows slightly thinner. The oxide thickness therefore reproduces the dopant striation pattern as a map of thicker and thinner regions. The enhancement works somewhat differently for n-type and p-type dopants, as summarized below.
| Dopant | Behavior at the silicon to oxide interface | Effect on oxidation |
|---|---|---|
| Phosphorus (n-type) | Piles up in the silicon at the interface | Strongly enhances the interface reaction, raising the linear oxidation rate |
| Arsenic, antimony (n-type) | Pile up at the interface like phosphorus | Enhance oxidation at high concentration |
| Boron (p-type) | Is drawn into the growing oxide | Weakens the oxide and speeds oxidant diffusion, raising the parabolic rate |
Oxide Thickness Changes the Color
Thermal oxide is transparent, and the color seen on an oxidized wafer comes from thin film interference between light reflected from the top of the oxide and light reflected from the silicon underneath. The interference color depends on the oxide thickness, and even a few nanometers of difference can cause noticeable color changes. The thicker and thinner striations therefore appear as bands of different colors. In effect, the oxidation develops the invisible dopant pattern into a visible color image, in much the same way the thermal oxide color chart maps oxide thickness to color.
Why Lower Quality, Heavily Doped Wafers
Two conditions have to be met for the rings to stand out. First, the doping must be high. The oxidation rate is essentially independent of doping until the concentration is large, roughly 10¹⁹ to 10²⁰ cm⁻³ and above, so lightly and moderately doped wafers grow a uniform oxide and show no rings even when striations are present. Heavily doped substrates, such as the low resistivity wafers used as conductive substrates or epitaxial bases, sit in the range where the oxidation rate does vary with doping.
Second, the substrate must have meaningful striation amplitude. Crystals grown with good thermal symmetry and well controlled rotation have small striations and tight radial resistivity uniformity, while lower quality material has larger swings in doping from center to edge and stronger striations. When high doping meets poor uniformity, the resulting oxide thickness variation becomes large enough to see as rings.
Do Dopant Rings Matter?
Whether the rings are a problem depends on the device. In many cases they are largely cosmetic, because the oxide thickness variation that produces the color is small and the finished device is unaffected. However, the rings are a direct, visible indicator of resistivity non-uniformity in the substrate, and that can matter. If the substrate resistivity is part of the device, if the oxide must hold a tight thickness tolerance, as in capacitors, optical layers, or etch stops, or if the device is otherwise sensitive to doping variation, the same non-uniformity that produces the rings can affect yield and performance. In those cases the rings are a useful warning that the incoming material is not as uniform as the application requires.
How to Avoid or Reduce Dopant Rings
- Specify substrates with a tight radial resistivity uniformity, not just a nominal resistivity value.
- Choose higher quality crystal grown with good thermal and rotational control; for the most demanding cases, magnetically controlled Czochralski (MCZ) material has reduced striations.
- For applications that need precise oxide thickness, select prime, tightly specified substrates rather than test or low-grade material.
- Remember that the cause is in the wafer, not the furnace, so adjusting the oxidation recipe will not remove striations that are built into the crystal.
- Work with your foundry to set an incoming material specification that matches the device requirement.

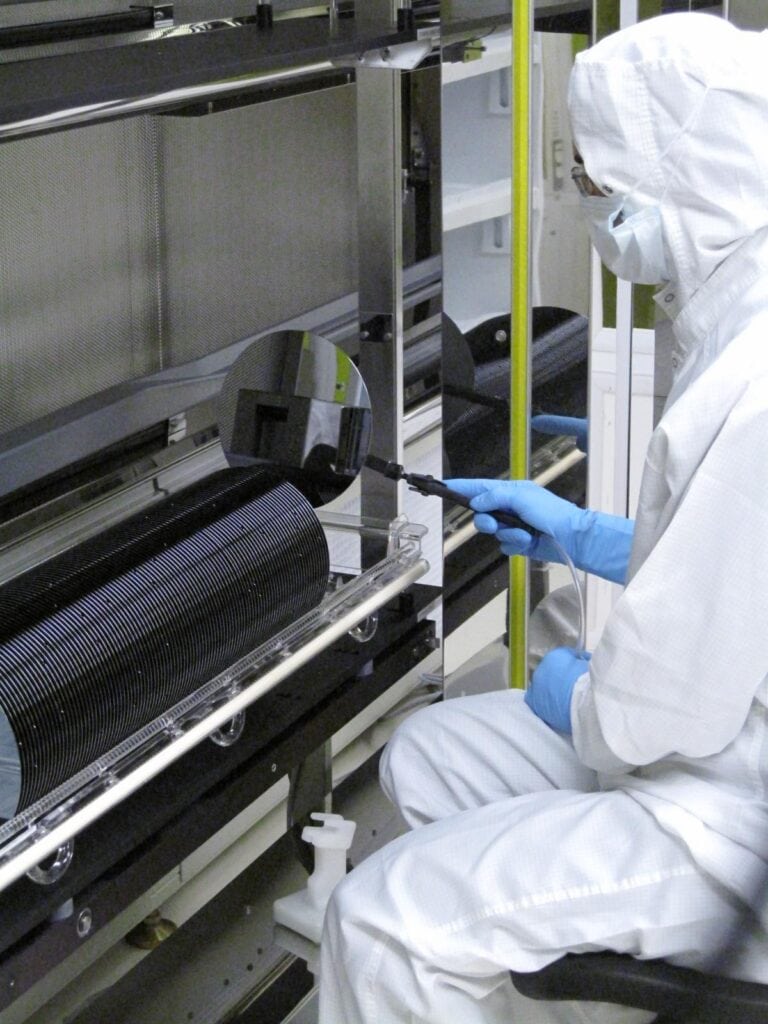

Rogue Valley Microdevices Thermal Oxidation and Wafer Services
Rogue Valley Microdevices provides thermal oxidation along with wafer services and substrate sourcing. We can help determine whether a ring pattern reflects the incoming substrate or the process. For applications that depend on oxide thickness uniformity or substrate resistivity uniformity, the team can advise on substrate selection and specifications so the starting material is better aligned with the performance needs of your device.
- Thermal oxidation, including dry and wet oxide, on 100mm, 150mm, and 200mm substrates.
- Guidance on substrate resistivity and radial uniformity specifications.
- Wafer sourcing and wafer services to match incoming material to the application.
- A thermal oxide color chart as a quick oxide thickness reference.
Frequently Asked Questions
Do the rings indicate an issue with the oxidation process?
No. The rings reveal a dopant non-uniformity that was already present in the substrate. The oxide simply makes that pattern visible by varying slightly in thickness and therefore in color.
Why does the bare wafer look uniform?
A bare polished wafer reflects light somewhat uniformly, so small doping differences remain hidden. Once a transparent oxide forms, interference colors reveal slight thickness variations and the underlying doping pattern.
Do lightly doped wafers show dopant rings?
Generally, no. The oxidation rate is essentially independent of doping at low and moderate concentrations, so the oxide grows uniformly and no rings appear, even if faint striations exist in the crystal.
Which dopants cause this?
Heavy n-type doping with phosphorus, arsenic, or antimony, and heavy boron doping. The n-type dopants pile up at the interface and enhance the interface reaction, while boron is drawn into the oxide and speeds oxidant diffusion.
Can changing the oxidation recipe remove the rings?
No. Because the cause is built into the crystal, the fix is to select substrates with tighter resistivity uniformity rather than to change the oxidation conditions.
Are dopant rings a defect?
They are best understood as a visible sign that the resistivity is not uniform across the silicon wafer. Whether that rises to the level of a defect depends entirely on how sensitive the device is to doping and oxide thickness variation.
