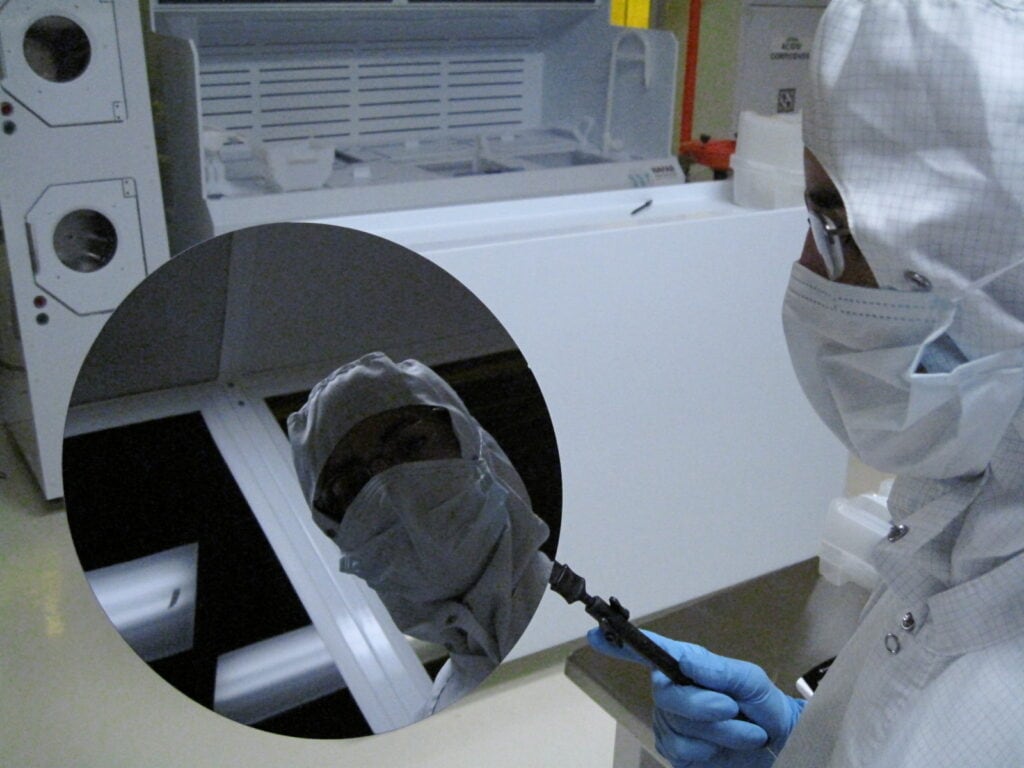

Horizontal anneal furnace processing MEMS wafers
MEMS Process Resource

Thermal Anneals for MEMS

An anneal adds nothing and removes nothing. It gives atoms the energy to move, react, and settle, turning as-deposited films into stable, well characterized parts of a device. This guide explains what anneals do, the main ambients, furnace versus rapid thermal annealing, and how to choose the right conditions.

A thermal anneal is a controlled heat treatment that holds a wafer at a chosen temperature, for a chosen time, in a chosen gas, to bring about a beneficial change in a film or structure. Unlike deposition or etching, an anneal usually adds and removes nothing; it simply gives atoms the energy to move, react, and reorganize. In MEMS fabrication, anneals are used to densify deposited films, passivate interfaces, relieve or stabilize film stress, form and improve metal contacts, and activate implanted dopants such as the boron in a piezoresistive pressure sensor.

The result of an anneal is set by four variables, temperature, time, ambient gas, and the ramp and cool rate, balanced against the thermal budget that the rest of the device can tolerate. This guide explains what anneals do, the main ambients, the difference between furnace and rapid thermal annealing, the common MEMS uses, and how Rogue Valley Microdevices anneals fit, for MEMS and related microfabrication applications.

What a Thermal Anneal Does

Heat is energy, and at anneal temperatures that energy lets atoms diffuse, bonds rearrange, and films settle into a lower energy, more stable state. Depending on the temperature and ambient, the same basic step can densify a porous film, drive hydrogen out of a dielectric, let a metal react with silicon to form a low resistance contact, move and activate implanted dopants, or relax built in stress. Because nothing is patterned, an anneal acts on the whole wafer at once, which is why it is defined by process conditions rather than by a mask.

Anatomy of an annealA temperature versus time profile: a controlled ramp up, a soak at the anneal temperature in a chosen ambient, and a controlled cool down.Anatomy of an annealTimeTemperatureAnneal temperatureControlled rampSoak: time at temperature, in the chosen ambientControlled coolAmbient gas: N₂, forming gas, O₂, or vacuum
Four variables set the result. Temperature, time at temperature, the ambient gas, and the ramp and cool rate together decide what the anneal does to the film.

Why Anneal in MEMS

MEMS devices are built from stacks of deposited and grown films whose mechanical and electrical properties must be predictable and stable. Anneals are one of the main tools for making them so. A nitrogen anneal densifies a PECVD oxide or nitride so it does not shift during later high temperature steps. A forming gas anneal passivates the dangling bonds at a silicon to oxide interface and alloys metal contacts. An inert anneal relieves or stabilizes the residual stress that determines how a membrane deflects or how a released beam curls. A high temperature anneal activates implanted dopants and repairs the damage left by implantation. In every case the goal is the same: to turn an as deposited or as implanted film into a stable, well characterized part of the device.

Anneal Ambients

The gas in the furnace is as important as the temperature, because it decides what chemistry can and cannot happen at the surface during the anneal.

AmbientGasTypical purpose
InertNitrogen or argonDensify films, relieve or stabilize stress, and drive or activate dopants without growing oxide
Forming gasHydrogen in nitrogen, about 4 percent hydrogenPassivate interface states and alloy or sinter metal contacts
OxidizingOxygen, or nitrogen with oxygenGrow or stabilize a thin oxide during the anneal
VacuumEvacuated, no process gasOutgassing and reaction free heat treatment
Forming gas anneal passivates the interfaceBefore the anneal, dangling bonds sit at the silicon to oxide interface; hydrogen from the forming gas caps them, passivating the interface.Forming gas anneal: interface passivationBefore annealOxideSiliconDangling bonds at the interfaceAfter forming gas annealOxideSiliconHydrogen caps the bonds
Why forming gas. The few percent of hydrogen in the ambient diffuses to the silicon to oxide interface and caps the dangling bonds, improving dielectric quality and contact behavior.

Furnace Anneal and Rapid Thermal Anneal

Anneals are carried out in two main ways. A furnace anneal heats a batch of wafers together in a resistively heated tube, ramping slowly and holding for minutes to hours, which gives excellent uniformity and high throughput and suits densification, stress control, interface passivation, and longer diffusions. A rapid thermal anneal heats a single wafer with lamps, reaching temperature in seconds and cooling quickly, which keeps the total thermal budget low. That short, hot cycle is used to activate implanted dopants while limiting how far they diffuse, to form silicides, and for other steps that need high temperature but very little time.

Batch furnace annealA horizontal furnace anneals a batch of vertically loaded wafers in a flowing ambient, with the tube exhausting through a ball and socket joint.Furnace annealA whole batch, minutes to hours450 °CFURNACE TUBEN₂ or forming gasBatch of wafersExhaust
Uniform and high throughput. A resistively heated tube ramps slowly and soaks a full batch, ideal for densification, stress control, and passivation.
Rapid thermal annealA lamp array heats a single wafer to temperature in seconds, keeping the thermal budget low.Rapid thermal annealOne wafer, seconds at temperatureLamp arraySingle wafer
Hot but brief. Lamps take one wafer to temperature in seconds and cool it quickly, activating dopants or forming silicide with minimal diffusion.
PropertyFurnace AnnealRapid Thermal Anneal
HeatingResistive furnace heats a whole batchLamps heat one wafer at a time
DurationMinutes to hoursSeconds to a few minutes
Ramp rateSlowVery fast
ThroughputHigh; batch of many wafersOne wafer at a time
Thermal budgetHigherLower; limits diffusion
Best forDensification, stress, interface passivation, longer diffusionsDopant activation with shallow junctions, silicide, short anneals

Thermal Anneals and Film Stress

Residual film stress is a central concern in MEMS, because it sets how a membrane bows, how a cantilever curls after release, and how a resonant structure behaves. As deposited films, especially PECVD dielectrics and evaporated or sputtered metals, often carry significant intrinsic stress and can contain trapped hydrogen or other species that make the stress drift when the wafer is heated later in the flow. Annealing addresses this in two ways. It relaxes some of the intrinsic stress as the film reorganizes, and, just as important, it stabilizes the film by driving out volatile species and densifying the structure so the stress no longer changes during subsequent thermal steps. For a released MEMS structure, a predictable, stable stress is often more valuable than simply a low one.

Thermal Budget and Material Compatibility

An anneal never happens in isolation, so its temperature and time must respect everything already on the wafer. Aluminum metal, for example, limits many back end anneals to roughly 450 °C, which is why forming gas alloy anneals are run in that range. Existing dopant profiles will diffuse further at high temperature, and some films degrade if overheated. The general rule is to use the lowest temperature and shortest time that achieve the goal, and to reach for a rapid thermal anneal when a step genuinely needs high temperature but cannot afford the diffusion of a long furnace cycle.

Common MEMS Anneal Applications

  • Dopant activation for piezoresistors, activating and driving in implanted boron and repairing implant damage in pressure and force sensors.
  • Metal contact alloy and sinter, a forming gas anneal that lowers contact resistance and forms reliable ohmic contacts.
  • PECVD film densification, a nitrogen anneal that stabilizes deposited oxide and nitride against later thermal cycling.
  • Interface passivation, a forming gas anneal that neutralizes dangling bonds at the silicon to oxide interface and improves dielectric quality.
  • Film stress relief and stabilization for membranes, cantilevers, and other released structures.
  • Polysilicon anneal, activating dopants and relieving stress in structural polysilicon layers.
  • Bond strengthening for fusion bonded and silicon on insulator wafers.

Thermal Anneals at Rogue Valley Microdevices

  • Nitrogen, nitrogen with oxygen, and forming gas anneals, run in a horizontal furnace.
  • Nitrogen anneal to densify PECVD oxide and nitride films so they stay stable through later high temperature processing.
  • Forming gas anneal, recommended after dry chlorinated oxidation, to passivate dangling bonds at the silicon to oxide interface and secure the full benefit of the oxide.
  • Processed on both sides, on 50, 100, 125, 150, and 200mm wafers from about 100 to 2,000 µm thick, in silicon, silicon on insulator, and quartz.
  • The published thermal anneal process runs at 450 °C, well suited to densification, interface passivation, and metal contact alloying, and compatible with aluminum metal.
  • Annealing integrates with RVM thermal oxidation, LPCVD and PECVD films, and metal deposition; for higher temperature anneals, discuss your thermal budget with the team.

Purpose and Anneal Selection

PurposeTypical Anneal
Densify a PECVD oxide or nitride filmNitrogen anneal, to stabilize the film against later thermal steps
Passivate the silicon to oxide interfaceForming gas anneal, about 400 to 450 °C
Alloy or sinter metal contactsForming gas anneal, for a low resistance ohmic contact
Relieve or stabilize film stressInert anneal at the appropriate temperature
Activate implanted dopants and repair damageHigh temperature furnace anneal or rapid thermal anneal
Strengthen bonded or silicon on insulator wafersHigh temperature inert anneal

Choosing an Anneal

Start from the change you need and work back to the conditions. Decide the goal, whether it is densification, passivation, stress stabilization, contact alloying, or dopant activation, then choose the ambient that enables it, then set the lowest temperature and shortest time that reach the goal within the thermal budget the wafer allows.

A Simple Selection Workflow

  1. What is the goal: densify a film, passivate an interface, stabilize stress, alloy a contact, or activate dopants?
  2. Which ambient does it need: inert nitrogen or argon, forming gas, or an oxidizing gas?
  3. What temperature does the wafer allow? If aluminum is present, stay near 450 °C or below.
  4. Does the step need high temperature with minimal diffusion? Consider a rapid thermal anneal rather than a long furnace cycle.
  5. Can the anneal be combined with an existing thermal step, such as after oxidation or PECVD, to save a cycle?

Frequently Asked Questions

What is a thermal anneal?

A controlled heat treatment that holds a wafer at a set temperature, time, and ambient gas to densify films, passivate interfaces, relieve or stabilize stress, form contacts, or activate dopants, usually without adding or removing material.

What is a forming gas anneal?

An anneal in a mixture of hydrogen in nitrogen, typically about 4 percent hydrogen, run near 400 to 450 °C. It passivates dangling bonds at the silicon to oxide interface and alloys or sinters metal contacts for low resistance.

What is the difference between a furnace anneal and a rapid thermal anneal?

A furnace anneal heats a batch of wafers for minutes to hours with excellent uniformity, while a rapid thermal anneal heats one wafer with lamps for seconds to keep the thermal budget low, which suits dopant activation with shallow junctions and silicide formation.

Will annealing change my film stress?

Yes. An anneal can relax intrinsic stress and, just as importantly, stabilize it by driving out trapped species and densifying the film, so the stress does not drift during later thermal steps. This matters for membranes, cantilevers, and other released MEMS structures.

Does Rogue Valley Microdevices offer thermal annealing?

Yes. RVM provides nitrogen, nitrogen with oxygen, and forming gas anneals in a horizontal furnace, commonly to densify PECVD films and to passivate the silicon to oxide interface after oxidation.
